EPOXY ADHESIVES
TAIWANDALOC / DALOC
(EPOXY ADHESIVES)
Trade Description
Product Feature
TAIWANDALOC / DALOC single component EPOXY ADHESIVES is suit for bonding a variety of materials, it has good electrical insulation, solvent and chemical resistance, high structural strength after curing, excellent sealing and bonding properties. It is high-level insulation fixed material can curing in high temperature. Can be bonded very extensive material. It formulated for bonding and sealing the relay, electronic components, IC package, the sensor, crafts…. etc.
Product Description
|

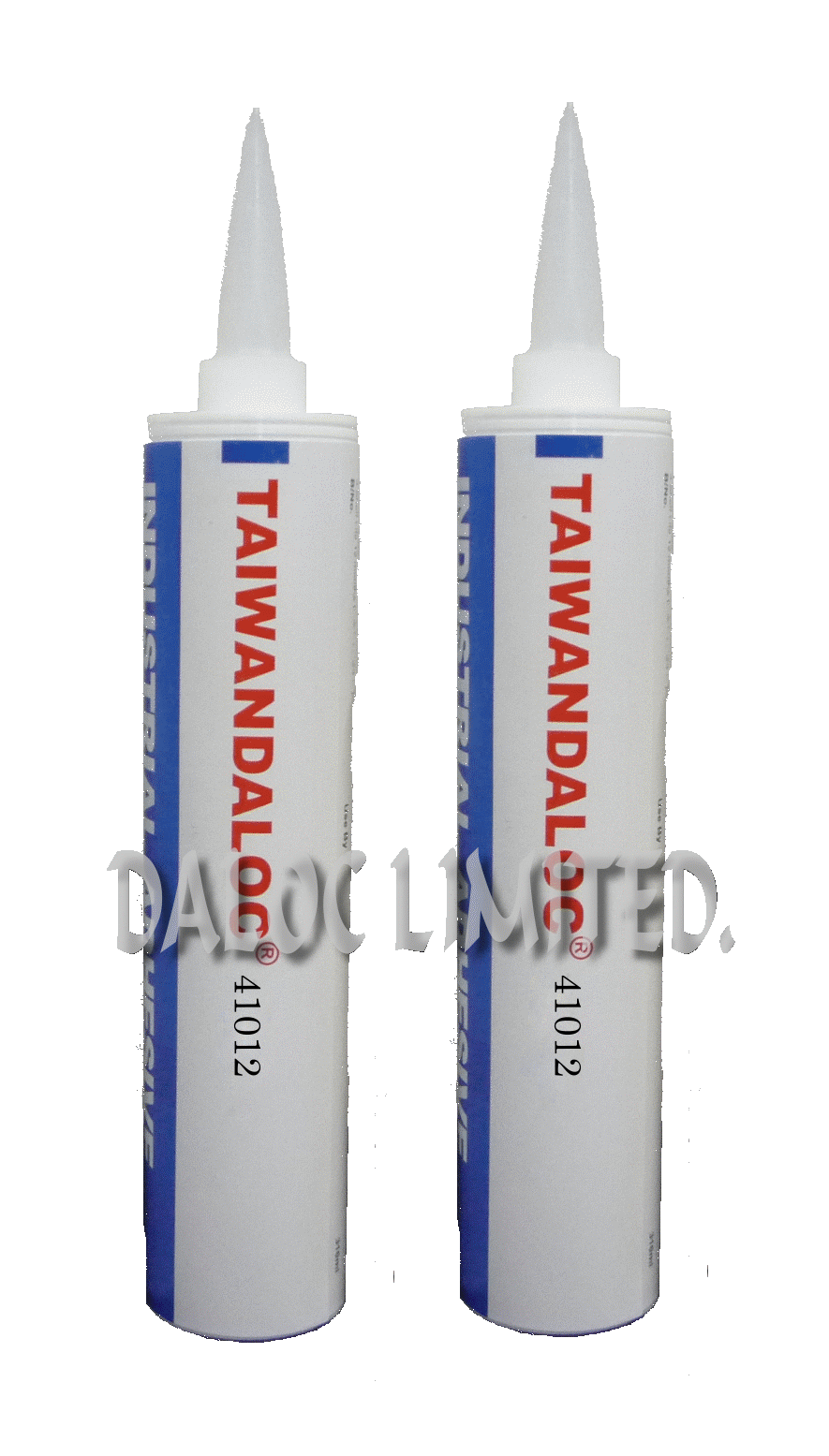

Item No：41012 |
||
|
|
41012 is a one-component epoxy based resin by heat curing, filled, construction adhesive and reliable protection for electronic applications. Curing time： |
Appearance：Silver Grey |
|
Viscosity@ |
||
|
Operating |
||
|
Tensile shear strength：57 N/mm2 |
||
|
Packing：310ml |
||
|
Item No：4102 |
||
|
|
4102 is a heat-cured one component thixotropic. Epoxy system with excellent physical and electrical properties. Especially suit for adhesive process of metal surface and coil code. Curing time： |
Appearance：Red / Black |
|
Viscosity@ |
||
|
Operating Temperature Range： |
||
|
Tensile shear strength：18 N/mm2 |
||
|
Packing：30ml , |
||
|

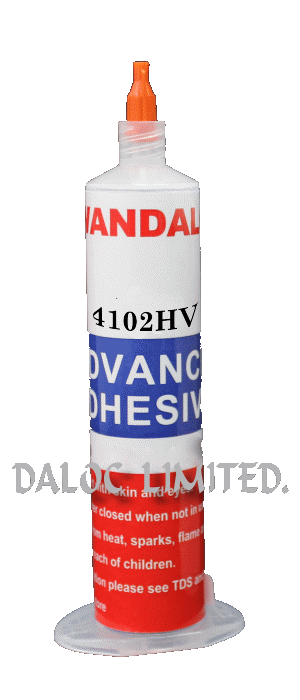

Item No：4102HV |
||
|
|
4102HV is a heat-cured one component thixotropic. Epoxy system with excellent physical and electrical properties. Especially suit for adhesive process of metal surface and coil code. Curing time： |
Appearance：Red / Black |
|
Viscosity@ |
||
|
Operating Temperature Range： |
||
|
Tensile shear strength：18 N/mm2 |
||
|
Packing：30ml , |
||
|
Item No：4104 |
||
|
|
4104 is a one-component epoxy based resins. The adhesive is filled with fine aluminium power. It is cure by heat. Curing time： |
Appearance：Silver Grey |
|
Viscosity@ |
||
|
Operating Temperature Range：-80 ~ +205℃ |
||
|
Tensile shear strength：40 N/mm2 |
||
|
Packing：310ml |
||
|
Item No：4106REV |
||
|
|
4106 REV is a one-component epoxy paste which flows like solder when heated during curing. The epoxy is also self-leveling for potting applications. It cure by heat. Curing time： |
Appearance：Silver Grey |
|
Viscosity@ |
||
|
Operating Temperature Range：-40 ~ +180℃ |
||
|
Tensile shear strength：40 N/mm2 |
||
|
Packing：310ml |
||
|
Item No：4107 |
||
|
|
4107 is a single component, high temperature resistant, heat activated epoxy. It cures to a high performance thermoset system with excellent adhesion properties to a wide variety of substrates. Curing time： |
Appearance：Amber - yellow |
|
Viscosity@ |
||
|
Operating Temperature Range：-40 ~ +204℃ |
||
|
Tensile shear strength：14 N/mm2 |
||
|
Packing：310ml |
||
|

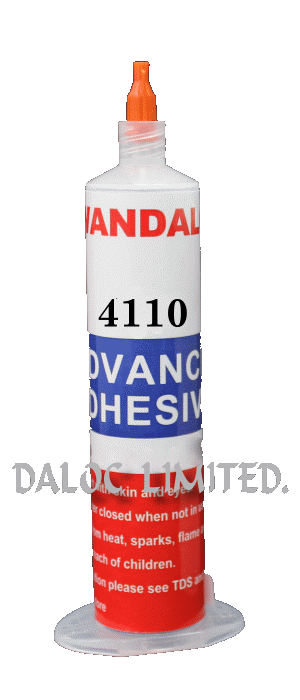

Item No：4110 |
||
|
|
4110 is a one-component epoxy based resins and reliable protection for electronic applications and fix motor coil. Curing time： |
Appearance：White / black |
|
Viscosity@ |
||
|
Operating Temperature Range：-40 ~ +160℃ |
||
|
Tensile shear strength：32 N/mm2 |
||
|
Packing：30ml , |
||
|
Item No：4114 |
||
|
|
4110 is a one-component epoxy based resins and reliable protection for electronic applications and fix motor coil. Curing time： |
Appearance：Brown |
|
Viscosity@ |
||
|
Operating Temperature Range：-40 ~ +180℃ |
||
|
Tensile shear strength：26 N/mm2 |
||
|
Packing：310ml |
||
|
Item No：4116 |
||
|
|
4116 is a one-component epoxy based resins and solvent free. The epoxy is reliable protection for electronic applications. It is cure by heat. Curing time： |
Appearance：White |
|
Viscosity@ |
||
|
Operating Temperature Range：-40 ~ +220℃ |
||
|
Tensile shear strength：26 N/mm2 |
||
|
Packing：30ml , |
||
|
Item No：4119HT |
||
|
|
4119HT is a one-component epoxy based resins and reliable protection for electronic applications. It is cure by heat. Curing time： |
Appearance：White / Black |
|
Viscosity@ |
||
|
Operating Temperature Range：-60 ~ +200℃ |
||
|
Tensile shear strength：35 N/mm2 |
||
|
Packing：30ml , |
||
|
Item No：4123H |
||
|
|
4123H is a one-component epoxy based resins and reliable protection for electronic applications. It is formulated for encapsulating IC chip and bonding, sealing of electronic part ex：small sensor. Curing time： |
Appearance：Black / Gray |
|
Viscosity@ |
||
|
Operating Temperature Range：-40 ~ +120℃ |
||
|
Tensile shear strength：22 N/mm2 |
||
|
Packing ：1pint , |
||
|

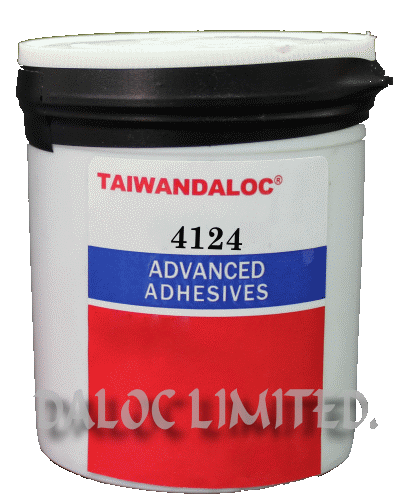

Item No：4124 |
||
|
|
4124 is a one-component epoxy based resins and reliable protection for electronic and SMT applications. Curing time： |
Appearance：Black / Gray |
|
Viscosity@ |
||
|
Operating Temperature Range：-40 ~ +150℃ |
||
|
Tensile shear strength：21 ~ 35 N/mm2 |
||
|
Packing：1 pint , |
||
