Item No：5101

5101 is a single component, medium viscosity adhesive and light activated. It formulated for potting, coating, encapsulating and sealing application. It cures rapidly when exposed to UV light.

Appearance：Clean

Viscosity@25℃：3,200cps

Hardness：85D

Packing ：30ml , 50gm , 250gm , 1kg

Item No：5102

5102 is a single component, medium viscosity adhesive and light activated. It formulated for bonding metal to glass and glass to glass. It cures rapidly when exposed to UV light.

Appearance：Clean

Viscosity@25℃：6,500cps

Tensile shear strength：14 N/mm²

Packing：30ml , 50gm , 250gm , 1kg

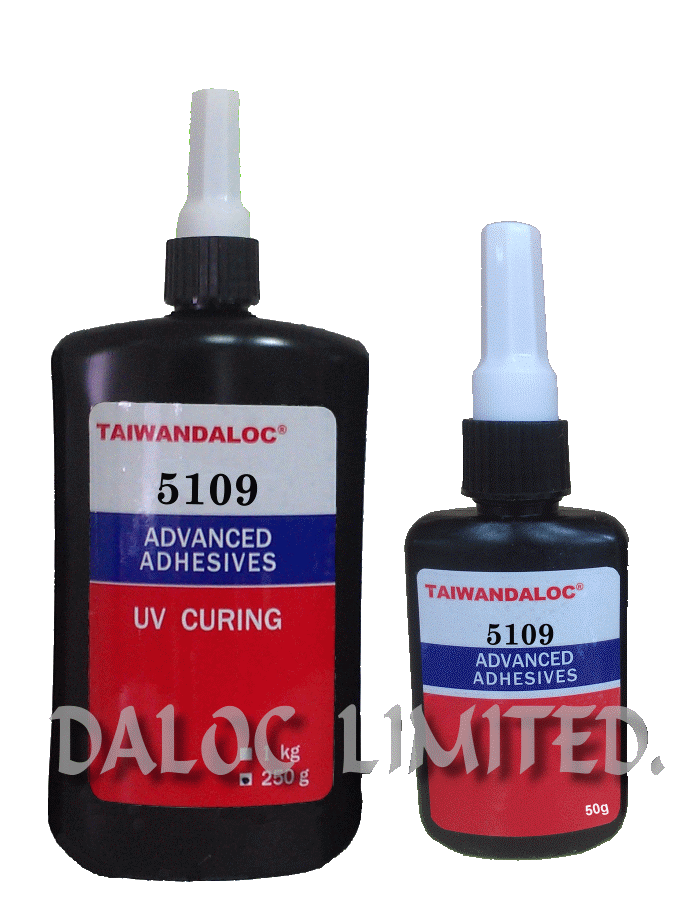

Item No：5109

5109 is a single component, low viscosity adhesive and light activated. It formulated for bonding plasticized, PVC and polycarbonate.  It cures rapidly when exposed to UV light.

Appearance：Clean

Viscosity@25℃：300cps

Operating Temperature Range：-50 ~ +120℃

Tensile shear strength：5 N/mm²

Packing：50gm , 250gm , 1kg

Item No：5201

5201 is a single component epoxy based resins solvent free and light activated. It formulated for bond to plastic, metal, glass and other materials as well as for coating, fixing or sealing of electronic components.  It allows curing even in shadow zones with sufficient illumination and further curing until final strength at room temperature.

Appearance：Lt. brown

Viscosity@25℃：33,000cps (thix.)

Operating Temperature Range：-30 ~ +150℃

Tensile shear strength：10 N/mm²

Packing：30ml , 50gm , 250gm , 1kg

Item No：5202

5202 is a single component epoxy based resins solvent free and light activated. It formulated for bond to plastic, metal, glass and other materials as well as for coating, fixing or sealing of electronic components. It allows curing even in shadow zones with sufficient illumination and further curing until final strength at room temperature.   It extremely stable ; not capillary and through pre-activation also suitable for bonding of light impermeable parts.

Appearance：Brown milky

Viscosity@25℃：32,000cps (thix.)

Operating Temperature Range：-40 ~ +150℃

Tensile shear strength：18 N/mm²

Packing：30ml , 50gm , 250gm , 1kg

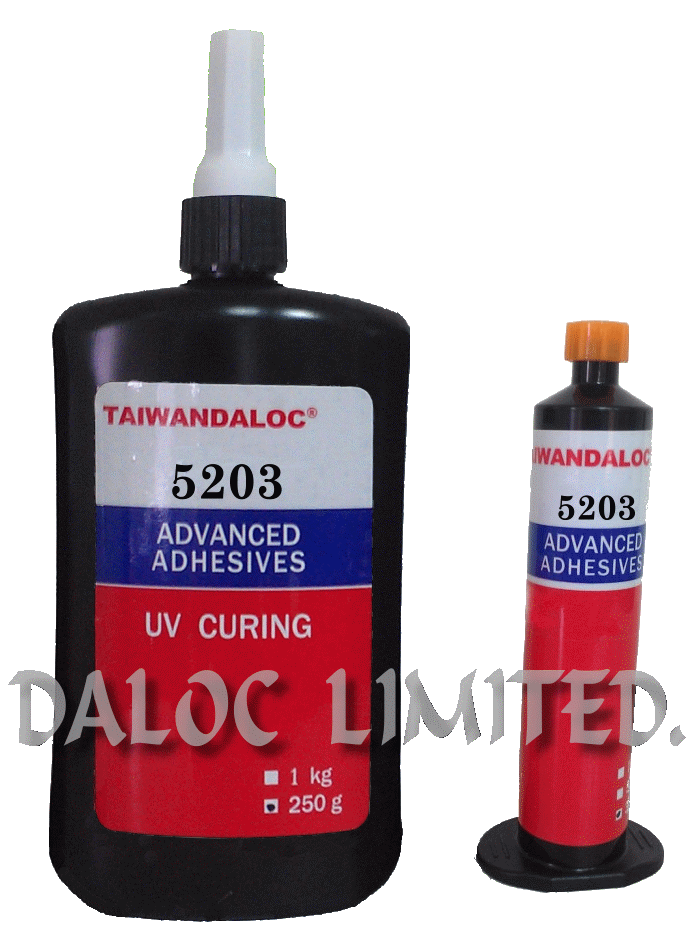

Item No：5203

5203 is a single component acrylate based resins solvent free and light activated. It formulated for bond to metal, glass, plastic and other materials. It extremely stable ; suitable for applications requiring a flexible adhesive with dry surface , for example：electronic component.   The cured resin provide tough dry surface.

Appearance：Milky

Viscosity@25℃：30,000cps

Tensile shear strength：19 N/mm²

Packing ：30ml , 50gm , 250gm , 1kg

Item No：5306

5306 is a single component, high viscosity, toughness bonding and durability adhesive.  It cures rapidly when exposed to UV light.  The cured resins provide high tensile strength and impact resistance and can resist humidity and immersion in water for short time.

Appearance：Translucent

Viscosity@25℃：6,000cps

Operating Temperature Range：-50 ~ +150℃

Tensile shear strength：16 ~ 24 N/mm²

Packing ：30ml , 50gm , 250gm , 1kg

Item No：5307

5307 is a single component, low viscosity, toughness bonding and durability adhesive. It cures rapidly when exposed to UV light.  The cured resin provide high tensile strength and impact resistance.

Appearance：clear

Viscosity@25℃：250~400cps

Operating Temperature Range：-50 +135℃

Tensile shear strength：15 ~ 20 N/mm²

Packing ：30ml , 50gm , 250gm , 1kg

Item No：5308M

5308M is a single component UV / Anaerobic cure high viscosity structural adhesive.  It is also capable of anaerobic cure with an activator, recommended Activator 7307. It provide high peel strength and excellent impact resistance properties. It cures rapidly when exposed to UV light.

Appearance：Lt. amber to clean

Viscosity@25℃：3,000 ~ 5,000cps

Operating Temperature Range：-50 +140℃

Tensile shear strength：10~18N/mm²

Packing：50gm , 250gm , 1kg

Item No：5315

5315 is a single component, medial viscosity thixotropic adhesive and light activated. It cures rapidly when exposed to UV light.5315 is bonding plastics, it is ideal for rigid and flexible PVC’s in combination to Polycarbonate where a flexible joint is required or the ability to gap fill up to 0.25mm.5315 is also bond glass, metals and most plastics.

Appearance：Lt. amber

Viscosity@25℃：5,000cps(thixotropic)

Operating Temperature Range：-30 +120℃

Tensile shear strength：10 N/mm²

Packing ：50gm , 250gm , 1kg

Item No：5503

5503 is a single component Epoxi-acrylat based resins, solvent free and light activated. Typical uses include bonding electric devices, optical fiber and decorative components….etc. It formulated for bonding, sealing and encapsulation of plastic, metal, glass and FR4 to protect sensitive electronic parts against mechanical and environmental stresses. Low shrink and tough dry surface.

Appearance：Grey amber

Viscosity@25℃：20,000cps

Operating Temperature Range：-40 +150℃

Tensile shear strength：24 N/mm²

Packing：30ml , 50gm , 250gm , 1kg

Item No：5514

5514 is a single component acrylat based resins, solvent free and light activated. 5514 is a UV curable or Heat cure adhesive that features excellent bonding on metal such as Brass, Steel, Aluminum and sintered materials,  Glass, PA (Polyamide).

It cures rapidly when exposed to UV light or cured by heat with sufficient intensity.

Appearance：Translucent

Viscosity@25℃：80,000cps

Operating Temperature Range：-40 +180℃

Tensile shear strength：7 N/mm²

Packing：30ml , 50gm , 250gm , 1kg

Item No：5701

5701 is a single component, medium viscosity, free solvent adhesive and light activated. It formulated for potting, coating, encapsulating and sealing application. 5701 is suitable for glass and metal bonding. 5701 has a transparent resin with excellent water and chemical resistance. It cures rapidly when exposed to UV light

Appearance：Clear

Viscosity@25℃：8,500cps

Operating Temperature Range：-40 +150℃

Tensile shear strength：12 N/mm²

Packing：30ml , 50gm , 250gm , 1kg

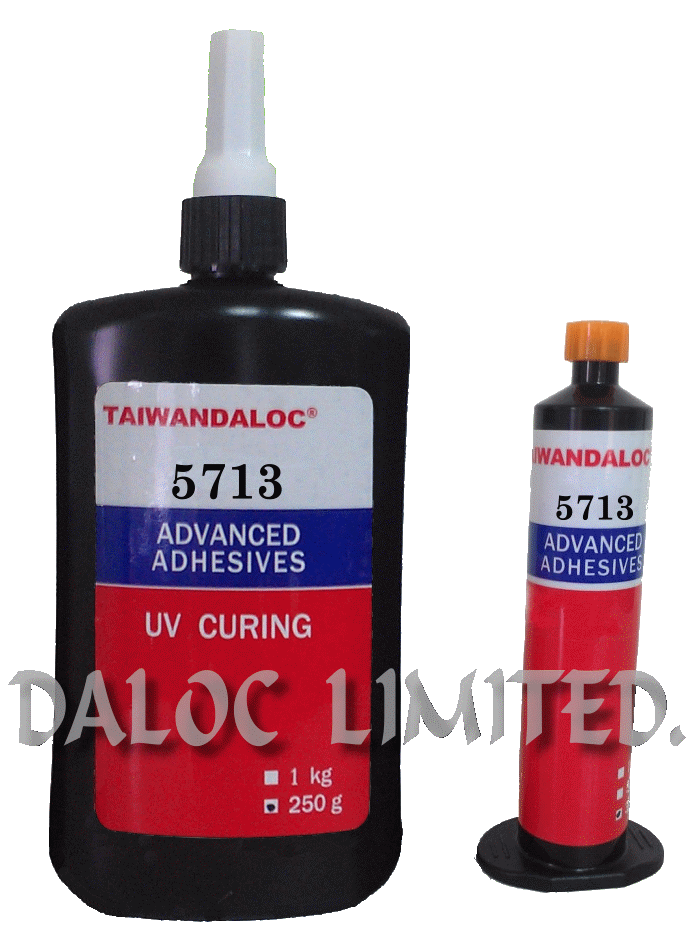

Item No：5713

5713 is a single component, high viscosity adhesive and UV light activated. It cures rapidly when exposed to UV light . It formulated for bonding, coating and sealing application. 5713 is bonding glass, metals and most plastics such as PC；PVC…etc.

Appearance：Clear

Viscosity@25℃：30,000 ~ 40,000cps

Operating Temperature Range：-50 +120℃

Tensile shear strength：26 N/mm²

Packing：30ml , 50gm , 250gm , 1kg
